audiere::DSOutputStream Class Reference

#include <device_ds_stream.h>

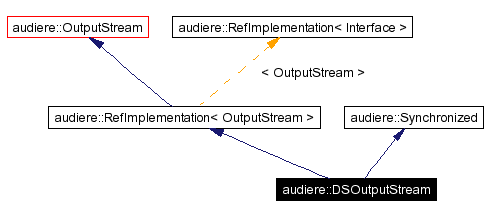

Inheritance diagram for audiere::DSOutputStream:

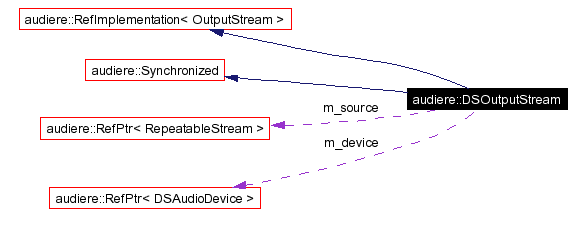

[legend]Collaboration diagram for audiere::DSOutputStream:

[legend]List of all members.

Public Methods
	DSOutputStream (DSAudioDevice *device, IDirectSoundBuffer *buffer, int buffer_length, SampleSource *source)
	~DSOutputStream ()
void ADR_CALL	play ()
void ADR_CALL	stop ()
bool ADR_CALL	isPlaying ()
void ADR_CALL	reset ()
void ADR_CALL	setRepeat (bool repeat)
bool ADR_CALL	getRepeat ()
void ADR_CALL	setVolume (float volume)
float ADR_CALL	getVolume ()
void ADR_CALL	setPan (float pan)
float ADR_CALL	getPan ()
void ADR_CALL	setPitchShift (float shift)
float ADR_CALL	getPitchShift ()
bool ADR_CALL	isSeekable ()
int ADR_CALL	getLength ()
void ADR_CALL	setPosition (int position)
int ADR_CALL	getPosition ()
Friends
class	DSAudioDevice

---

Constructor & Destructor Documentation

audiere::DSOutputStream::DSOutputStream (  DSAudioDevice *    device, IDirectSoundBuffer *    buffer, int    buffer_length, SampleSource *    source )

Definition at line 8 of file device_ds_stream.cpp. References ADR_GUARD, audiere::SampleSource::getFormat(), audiere::GetSampleSize(), audiere::hidden::sample_format, audiere::SampleFormat, setPan(), and setVolume().

audiere::DSOutputStream::~DSOutputStream (    )

Definition at line 49 of file device_ds_stream.cpp. References ADR_GUARD.

---

Member Function Documentation

int audiere::DSOutputStream::getLength (    )  [virtual]

Returns : number of frames in the stream, or 0 if the stream is not seekable Implements audiere::OutputStream. Definition at line 173 of file device_ds_stream.cpp. References SYNCHRONIZED.

float audiere::DSOutputStream::getPan (    )  [virtual]

Get current pan. Implements audiere::OutputStream. Definition at line 146 of file device_ds_stream.cpp.

float audiere::DSOutputStream::getPitchShift (    )  [virtual]

Get current pitch shift. Defaults to 1.0. Implements audiere::OutputStream. Definition at line 158 of file device_ds_stream.cpp.

int audiere::DSOutputStream::getPosition (    )  [virtual]

Returns the current position within the sample source. Returns : current position in frames Implements audiere::OutputStream. Definition at line 208 of file device_ds_stream.cpp. References SYNCHRONIZED.

bool audiere::DSOutputStream::getRepeat (    )  [virtual]

Returns : true if the stream is repeating Implements audiere::OutputStream. Definition at line 119 of file device_ds_stream.cpp. References SYNCHRONIZED.

float audiere::DSOutputStream::getVolume (    )  [virtual]

Gets the current volume. Returns : current volume of the output stream Implements audiere::OutputStream. Definition at line 133 of file device_ds_stream.cpp.

bool audiere::DSOutputStream::isPlaying (    )  [virtual]

Returns : true if the output stream is playing, false otherwise Implements audiere::OutputStream. Definition at line 77 of file device_ds_stream.cpp. Referenced by reset(), and setPosition().

bool audiere::DSOutputStream::isSeekable (    )  [virtual]

Returns : true if the stream is seekable, false otherwise Implements audiere::OutputStream. Definition at line 166 of file device_ds_stream.cpp. References SYNCHRONIZED.

void audiere::DSOutputStream::play (    )  [virtual]

Start playback of the output stream. If the stream is already playing, this does nothing. Implements audiere::OutputStream. Definition at line 61 of file device_ds_stream.cpp. References ADR_GUARD. Referenced by reset(), and setPosition().

void audiere::DSOutputStream::reset (    )  [virtual]

Reset the sample source or buffer to the beginning. On seekable streams, this operation is equivalent to setPosition(0). On some output streams, this operation can be moderately slow, as up to several seconds of PCM buffer must be refilled. Implements audiere::OutputStream. Definition at line 83 of file device_ds_stream.cpp. References ADR_GUARD, isPlaying(), play(), stop(), and SYNCHRONIZED.

void audiere::DSOutputStream::setPan (  float    pan )  [virtual]

Set current pan. Parameters: pan  -1.0 = left, 0.0 = center (default), 1.0 = right Implements audiere::OutputStream. Definition at line 139 of file device_ds_stream.cpp. Referenced by DSOutputStream().

void audiere::DSOutputStream::setPitchShift (  float    shift )  [virtual]

Set current pitch shift. Parameters: shift  can range from 0.5 to 2.0. default is 1.0. Implements audiere::OutputStream. Definition at line 152 of file device_ds_stream.cpp.

void audiere::DSOutputStream::setPosition (  int    position )  [virtual]

Sets the current position within the sample source. If the stream is not seekable, this method does nothing. Parameters: position  current position in frames Implements audiere::OutputStream. Definition at line 180 of file device_ds_stream.cpp. References isPlaying(), play(), stop(), and SYNCHRONIZED.

void audiere::DSOutputStream::setRepeat (  bool    repeat )  [virtual]

Set whether the output stream should repeat. Parameters: repeat  true if the stream should repeat, false otherwise Implements audiere::OutputStream. Definition at line 112 of file device_ds_stream.cpp. References SYNCHRONIZED.

void audiere::DSOutputStream::setVolume (  float    volume )  [virtual]

Sets the stream's volume. Parameters: volume  0.0 = silence, 1.0 = maximum volume (default) Implements audiere::OutputStream. Definition at line 126 of file device_ds_stream.cpp. Referenced by DSOutputStream().

void audiere::DSOutputStream::stop (    )  [virtual]

Stop playback of the output stream. If the stream is already stopped, this does nothing. Implements audiere::OutputStream. Definition at line 69 of file device_ds_stream.cpp. References ADR_GUARD. Referenced by reset(), and setPosition().

---

Friends And Related Function Documentation

friend class DSAudioDevice [friend]

Definition at line 75 of file device_ds_stream.h.

---

The documentation for this class was generated from the following files:

• device_ds_stream.h
• device_ds_stream.cpp

---
