audiere::LoopPointSource Class Reference

#include <audiere.h>

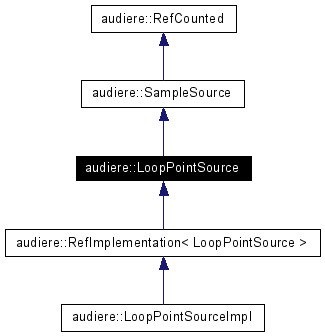

Inheritance diagram for audiere::LoopPointSource:

[legend]Collaboration diagram for audiere::LoopPointSource:

[legend]List of all members.

Public Member Functions
virtual void	addLoopPoint (int location, int target, int loopCount)=0
virtual void	removeLoopPoint (int index)=0
virtual int	getLoopPointCount ()=0
virtual bool	getLoopPoint (int index, int &location, int &target, int &loopCount)=0
Protected Member Functions
	~LoopPointSource ()

---

Detailed Description

LoopPointSource is a wrapper around another SampleSource, providing custom loop behavior. LoopPointSource maintains a set of links within the sample stream and whenever the location of one of the links (i.e. a loop point) is reached, the stream jumps to that link's target. Each loop point maintains a count. Every time a loop point comes into effect, the count is decremented. Once it reaches zero, that loop point is temporarily disabled. If a count is not a positive value, it cannot be disabled. Calling reset() resets all counts to their initial values.

Loop points only take effect when repeating has been enabled via the setRepeat() method.

Loop points are stored in sorted order by their location. Each one has an index based on its location within the list. A loop point's index will change if another is added before it.

There is always one implicit loop point after the last sample that points back to the first. That way, this class's default looping behavior is the same as a standard SampleSource. This loop point does not show up in the list.

Definition at line 425 of file audiere.h.

---

Constructor & Destructor Documentation

audiere::LoopPointSource::~LoopPointSource (   )  [inline, protected]

Definition at line 427 of file audiere.h.

---

Member Function Documentation

virtual void audiere::LoopPointSource::addLoopPoint (  int  location, int  target, int  loopCount )  [pure virtual]

Adds a loop point to the stream. If a loop point at 'location' already exists, the new one replaces it. Location and target are clamped to the actual length of the stream. Parameters: location  frame where loop occurs target  frame to jump to after loop point is hit loopCount  number of times to execute this jump. Implemented in audiere::LoopPointSourceImpl.

virtual bool audiere::LoopPointSource::getLoopPoint (  int  index, int &  location, int &  target, int &  loopCount )  [pure virtual]

Retrieves information about a specific loop point. Parameters: index  index of the loop point location  frame where loop occurs target  loop point's target frame loopCount  number of times to loop from this particular point Returns: true if the index is valid and information is returned Implemented in audiere::LoopPointSourceImpl.

virtual int audiere::LoopPointSource::getLoopPointCount (   )  [pure virtual]

Returns the number of loop points in this stream. Implemented in audiere::LoopPointSourceImpl.

virtual void audiere::LoopPointSource::removeLoopPoint (  int  index  )  [pure virtual]

Removes the loop point at index 'index' from the stream. Parameters: index  index of the loop point to remove Implemented in audiere::LoopPointSourceImpl.

---

The documentation for this class was generated from the following file:

• audiere.h

---
